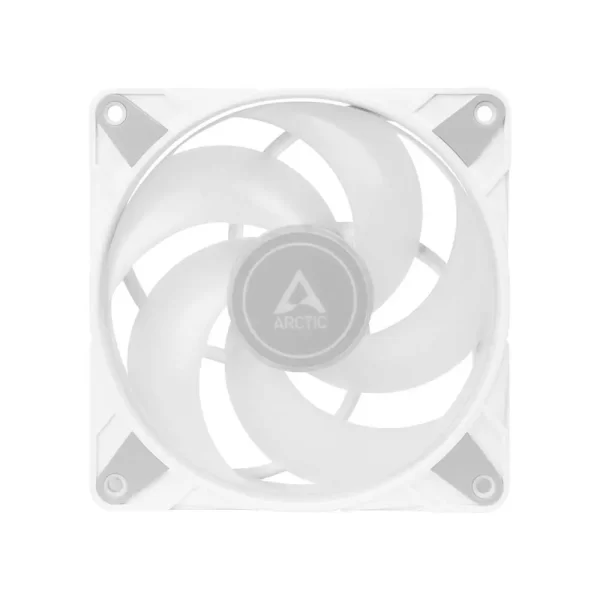

The Arctic P12 PWM PST ARGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
General Specifications
Performance
Fan Speed
200—2000 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow
48.80 cfm | 82.91 m³/h
Static Pressure
1.85 mmH2O
Noise Level
0.3 Sone
Fan
Fan Frame
Standard
Control Type
PWM PST
Connector
4-Pin Connector + 4-Pin Socket
Fan Bearing
Fluid Dynamic Bearing
Operating Ambient Temperature
0—40 °C
Electric Characteristics
Typical Voltage
12V DC
Starting Voltage
5V
Current | Voltage
0.11 A | 12 V DC
Cable Length
400mm
RGB Specifications
LEDs
12 A-RGB LEDs
Connector
3-Pin 5 V-DI-GND Connector
Current / Voltage
0.4 A | 5 V
Cable
400 mm Cable with 80 mm Sharing Cable, Black
Size & Weight
Length
120mm
Width
120mm
Height
25mm
Weight
131g
Warranty
6 Years
Note**
**Prices, Specifications & Features are subject to change without notice
Brand
Arctic
cabinet-fan-led
ARGB
cabinet-fan-size
120 mm
