Name: Asus Rog Strix X670E-E Gaming WiFi Amd Ryzen X670 Am5 Atx Motherboard (ROG Strix X670E-E Gaming WiFi)
SKU: 4359
Price: 51900.00 INR
Availability: InStock

Description

Asus Rog Strix X670E-E Gaming WiFi Amd Ryzen X670 Am5 Atx Motherboard (ROG Strix X670E-E Gaming WiFi)

Level up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.

Specification :

CPU	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
CPU	* Refer to www.asus.com for CPU support list.
Chipset	AMD X670
Memory	4 x DIMM, Max. 128GB, DDR5
	6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports AMD EXTended Profiles for Overclocking (EXPO™)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	1 x DisplayPort**
	1 x HDMI® port***
	**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen™ 7000 Series Desktop Processors*
	2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
	AMD X670 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen™ 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))
	AMD X670 Chipset
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet	1 x Intel® 2.5Gb Ethernet
Ethernet	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E
	2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5/6GHz frequency band*
	Bluetooth v5.2
	* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB	Rear USB (Total 13 ports)
	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
	12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x USB Type-C^®)
	Front USB (Total 9 ports)
	1 x USB 3.2 Gen 2×2 connector
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	3 x USB 2.0 headers support additional 6 USB 2.0 ports

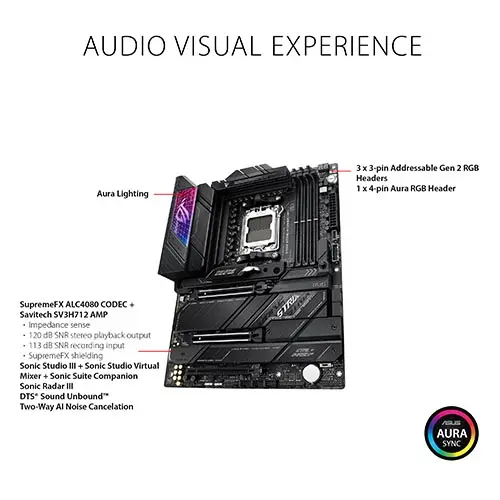

Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	– Impedance sense for front and rear headphone outputs
	– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	– Supports up to 32-Bit/384 kHz playback
	Audio Features
	– Audio Shielding
	– Savitech SV3H712 AMP
	-Gold-plated audio jacks
	– Rear optical S/PDIF out port
	– Premium audio capacitors
	– Audio cover
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

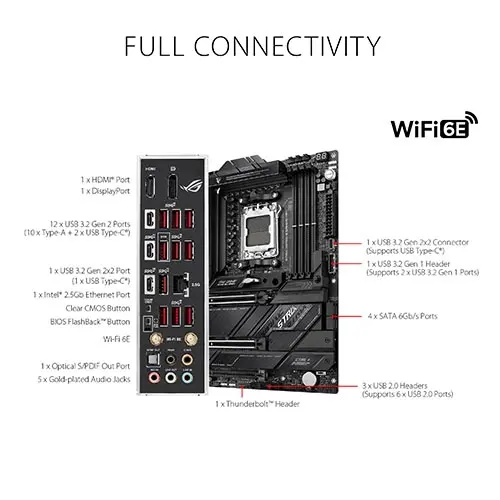

Back Panel I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x Type-C®)
	12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C®)
	1 x DisplayPort
	1 x HDMI® port
	1 x Wi-Fi Module
	1 x Intel® I225-V 2.5Gb Ethernet port
	5 x Gold-plated audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	5 x 4-pin Chassis Fan header
	Power related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V Power connector
	Storage related
	4 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	3 x USB 2.0 headers support additional 6 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Alteration Mode Switch
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x Start button
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thermal Sensor header
	1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+
	– 5K Black Metallic Capacitors
	ASUS Q-Design
	– M.2 Q-Latch
	– PCIe Slot Q-Release
	– Q-Code
	– Q-DIMM
	– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	– Q-Slot

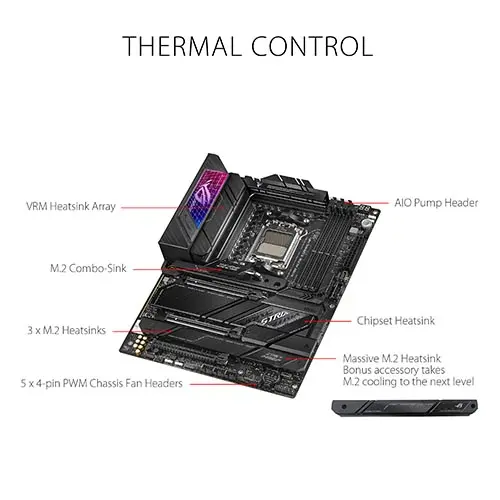

	ASUS Thermal Solution
	– M.2 heatsink backplate
	– M.2 heatsink
	– VRM heatsink design
	– Massive Bundled PCIe® 5.0 M.2 Heatsink
	ASUS EZ DIY
	– BIOS FlashBack™ button
	– BIOS FlashBack™ LED
	– Clear CMOS button
	– ProCool II
	– Pre-mounted I/O shield
	– SafeSlot
	– SafeDIMM
	AURA Sync
	– AURA RGB header
	– Addressable Gen 2 headers
Software Features	ROG Exclusive Software
	– GameFirst VI
	– ROG CPU-Z
	– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
	– Sonic Radar III
	– DTS^® Sound Unbound
	– Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	– AIDA64 Extreme (60 days free trial)
	– AURA Creator
	– AURA Sync
	– Fan Xpert 4 (with AI Cooling II)
	– Power Saving
	– Two-Way AI Noise Cancellation
	AI Suite 3
	– TPU
	– DIGI+ VRM
	– Turbo app
	– PC Cleaner
	MyAsus
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	– ASUS CrashFree BIOS 3
	– ASUS EZ Flash 3
	– ASUS UEFI BIOS EZ Mode
	Dynamic OC Switcher
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

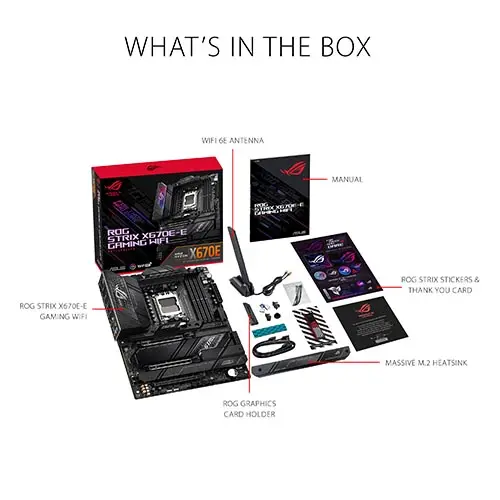

Accessories	Cables
	2x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x Thermal pad for M.2
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x Cable ties pack
	1 x Massive Bundled PCIe® 5.0 M.2 Heatsink
	1 x M.2 Q-Latch package for M.2 backplate
	1 x M.2 Q-Latch package
	1 x ROG Graphics card holder
	2 x Rubber Packages for M.2
	1 x Rubber Package for M.2 backplate
	1 x ROG key chain
	1 x ROG Strix sticker
	1 x ROG Strix thank you card
	Documentation
	1 x User guide
Operating System	Windows® 11 64-bit, Windows 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Dimension
Product (mm)_ LWH	305mm244mm50mm
Color Box (mm)_ LWH	338mm273mm68mm
Weight
Motherboard only	1.7 Kg
Full package	2.671 Kg
Warranty	3 Years
Note**	**Prices, Specifications & Features are subject to change without notice
