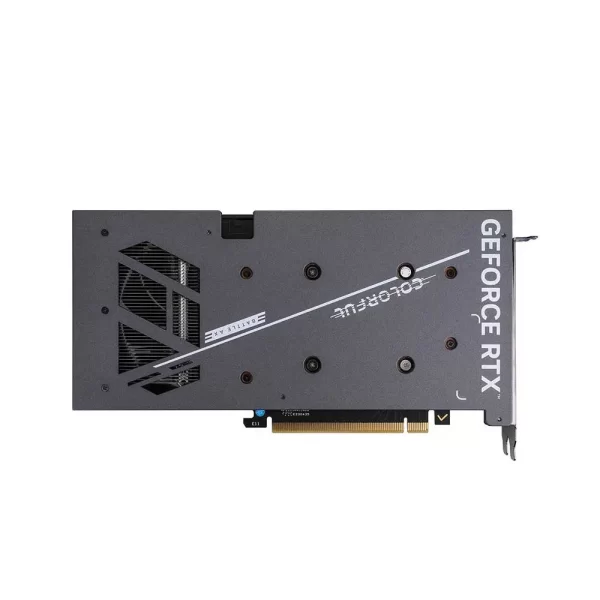

Battle Ax Backplate: Improved backplate design that provides structural rigidity and passive heat dissipation.
Hollow Back Panel: A hollow back panel design that allows airflow to freely pass through the heatsink. This design greatly improves heat dissipation compared to conventional GPU air cooling designs.

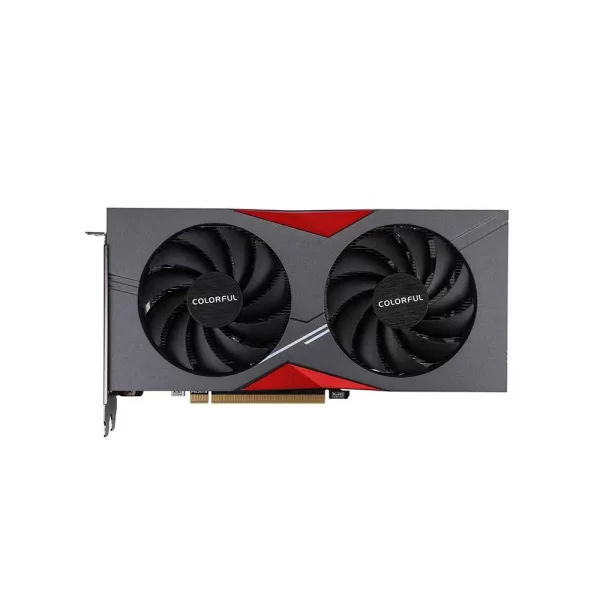

Efficient Airflow: With triple fans to improve air pressure and inlet volume, supporting auto-stop technology.
Reflow Soldering Technique: The process ensures that the thermal tube and the fin fit perfectly, optimizing heat dissipation performance and achieving excellent heat dissipation effects.
Model
Colorful GeForce RTX 4060 NB DUO 8GB V2-V
Chip Series
GeForce® RTX 4060
Product Series
Colorful Series
GPU Code Name
AD107
Cuda Cores
3072
Core Clock
Base:1830Mhz; Boost:2460Mhz
Memory Clock
17Gbps
Memory Size
8GB
Memory Bus Width
128bit
Memory Type
GDDR6
Memory Bandwidth
272GB/s
Power Connector
8-Pin
Power Supply
4+1
TDP
115W

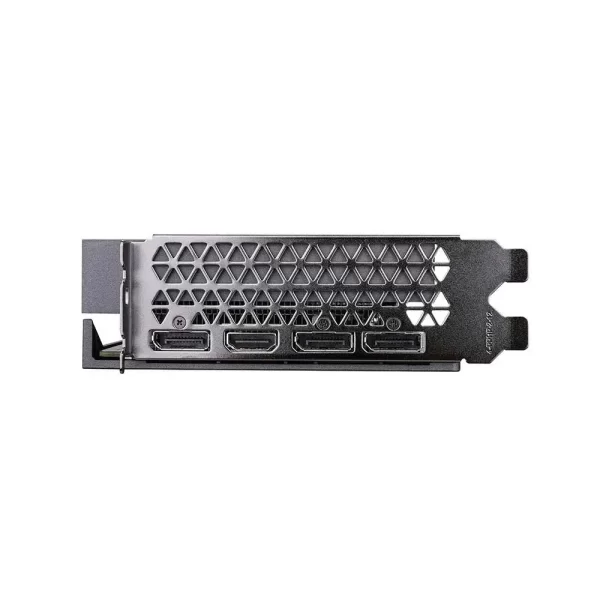

Display Ports
3*DP+HDMI
Fans Type
FAN
Heat Pipe Number / Spec
1*Φ8
Auto Stop Technology
Y
Power Suggest
450W
Direct X
DirectX 12 Ultimate/OpenGL4.6
NV Technology Support
NVIDIA DLSS 3, NVIDIA G-SYNC, 3rd Gen Ray Tracing Cores
Slot Number
2 Slot
Product Size
248.9*135*41.9mm
Product Weight
0.81KG(N.W)
Accessories
Warranty Card,Manual
Warranty
3 Years
Note**
**Prices, Specifications & Features are subject to change without notice
Brand
Colorful
GPU Memory Size
8GB
gpu-series
RTX 4060
graphics-chipset
NVIDIA GeForce RTX
