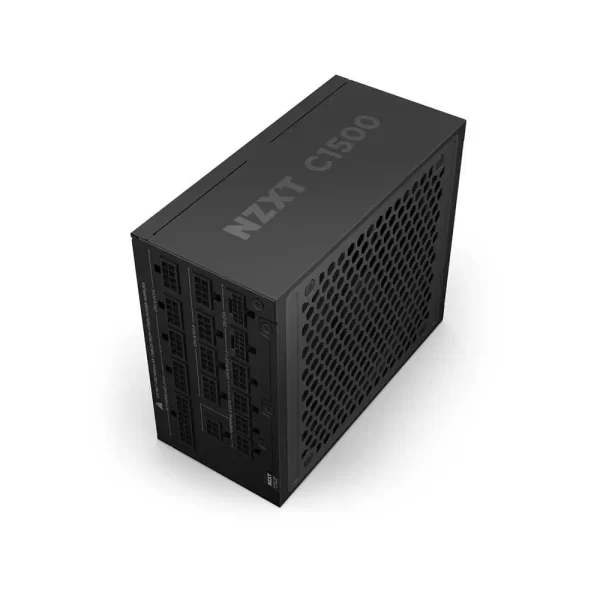

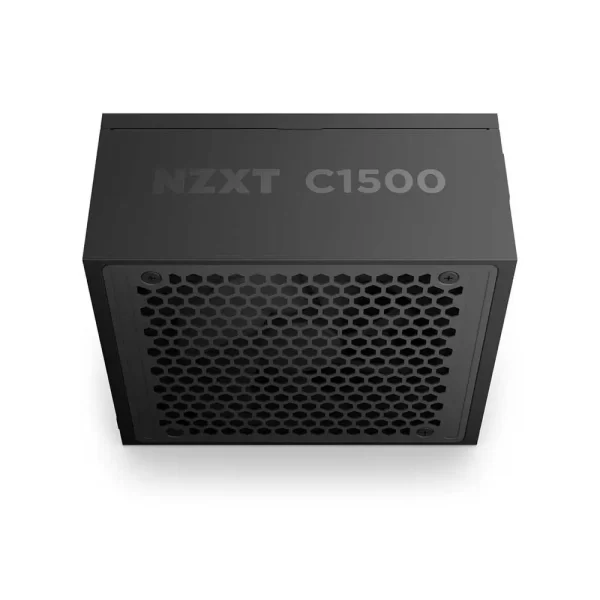

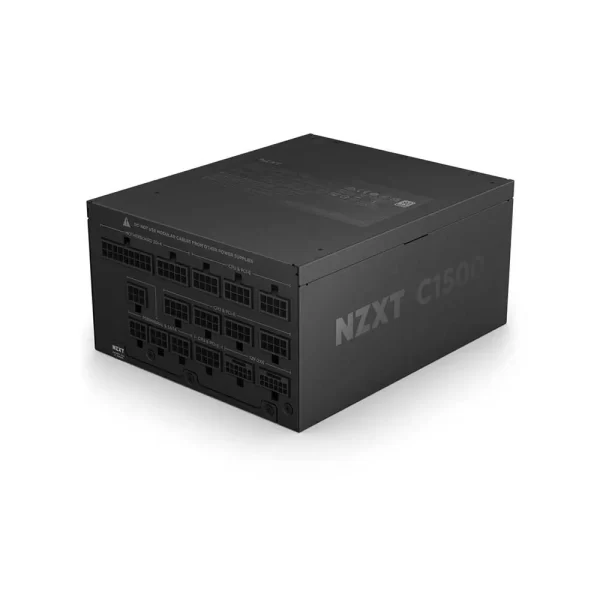

Nzxt C1500 1500 Watt 80 Plus Platinum Atx 3.1 Fully Modular Power Supply

Description

Nzxt C1500 1500 Watt 80 Plus Platinum Atx 3.1 Fully Modular Power Supply

The Nzxt C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.

• Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
• Includes two 16-pin 12V-2×6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
• Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
• Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
• Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
• 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
• Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
• Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
• Compact 180mm form factor optimizes valuable case space while promoting improved airflow.

Future-Proof Power:

ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.

Dual PCIe 5.1 Connectors:

Equipped with two 16-pin 12V-2×6 cables to power GPUs drawing more than 600 watts.

Digital Power:

Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.

Exceptional Efficiency:

Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.

Magnetic Levitation Fan:

140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.

Specifications:

Output Connectors
24-pin ATX Power Cable	1
4+4-pin CPU Power Cable	1
8-pin CPU Power Cable	1
6+2-pin PCIe Power Cable	6
16-pin (12+4) 12V-2×6 PCIe Cable	2
SATA Cable	12
Peripherals Cable	4
Cable Specs
24-pin ATX Power Cable	600mm with nylon sleeving
4+4-pin CPU Power Cable	700mm with nylon sleeving
8-pin CPU Power Cable	700mm with nylon sleeving
6+2-pin PCIe Power Cable	650mm with nylon sleeving
16-pin (12+4) 12V-2×6 PCIe Cable	650mm with nylon sleeving
SATA Cable	500 + 150 mm with nylon sleeving
Peripherals Cable	500 + 150 mm with nylon sleeving
AC Input Rating
100 – 240Vac	15A-9A 50Hz-60Hz
200 – 240Vac	9A 50Hz-60Hz
DC Output Rating
3.3V / +5V	22A (120W)
12V	125A (1500W)
5vsb	3A (15W)
Total	1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency
Rating	80 Plus Platinum
10% loading	92% @115Vac
20% loading	94% @115Vac
50% loading	93.8% @115Vac
100% loading	90.8% @115Vac
Electrical Features
PF Correction	Active @0.99
Protections	OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
Dimensions	140 x 140 x 25 mm
Speed	2500 ± 10% RPM
Airflow	125 CFM (Tpy.)
Noise	41.0 dBA max
Bearing	Magnetic Levitation Bearing (ML)
Operation
MTBF	100,000 hours
Temperature	0 – 50 °C
Dimensions
Width	5.91 in / 150 mm
Height	3.39 in / 86 mm
Depth	7.09 in / 180 mm
General
Material(s)	Steel, PCB and Plastic
Compliance Standard	ATX12V v3.1 / EPS12V v2.92
Regulartion & Certifications	FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
Warranty	10 Years
Note**	***Images are for representation purpose only **Prices, Specifications & Features are subject to change without notice
