The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.

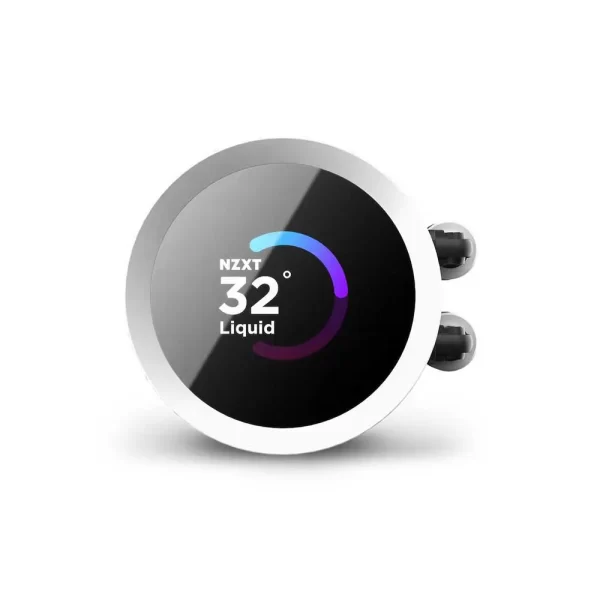

Pump features an embedded 1.54” square LCD screen to display real-time system info or custom images * Adjustable screen orientation accommodates pump head position
Powerful Asetek pump provides optimal cooling and up to 2,800 RPM whisper-quiet operation
Includes high-performance PWM fans with fluid dynamic bearings for optimal cooling
Includes F140/F120 RGB Core fans
Single breakout cable simplifies installation
Rubber tubing is reinforced with nylon-braided sleeves to prevent leaks
Control custom screen content, RGB, pump speed, and zero-noise fan curves with NZXT CAM software.
CAP
Material
Aluminum and plastic
Display Orientation
Software adjustable Default, +90, +180, and -90 Degrees
Display Panel Active Area
1.54″ (39.1mm)
Display Resolution
240 x 240 px
Display Brightness
300 cd/m²
Display Panel Type
Transmissive TFT, 262K color
Water Block
Dimensions
Diameter: 74.7mm H: 55.97mm
Material (Block)
Copper
Material (Housing)
Plastic
Pump
Motor Speed
800 – 2,800 ± 300 RPM
Power
12V DC, 0.3A
Radiator
Dimensions
143mm x 315mm x 30mm
Material
Aluminum
Tube
Length
400mm
Material
Ultra-low Evaporation Rubber with Nylon Braided Sleeve
Fan Specs
Model
F140 RGB Core Fans
Quantity
2
Dimension
140 x 140 x 26mm
Speed
500-1,500 ± 150 RPM
Airflow
90.79 CFM
Air Pressure
3.22 mm H2O
Noise
34.48 dBA
Bearing
Fluid Dynamic Bearing
Power Consumption
12 V DC, 0.24 A, 2.88 W
Fan Connector
4-Pin PWM
Life
60,000 hours / 6 Years
RGB Controller
Dimensions
63.2 x 53.2 x 12.8mm
Weight
52.8g
Mounting
Magnet and 3M Dual Lock
Connection Cables
1x USB 2.0 internal connector 1x SATA power cable
Input Connector
12V DC / 2.6A
RGB Lighting Channels
3
Output Channel Voltage
5V DC
NZXT RGB Channel Output LED Quantity
Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels
